REAL

REAL

The REAL Aluminium range offers a complete package of fenestration products suitable for all domestic installations.  The products are available on industry leading lead times, with a variety of colour options. Casement windows, bi-fold doors, French doors and patio doors are all made to measure, using Smart Architectural aluminium.


Products available in the REAL range

THUMBNAIL - REAL WINDOW.png

Casement Windows

The REAL Casement Windows range offers ultimate flexibility with numerous combinations of top-hung sashes, side-hung sashes, dummy sashes and fixed lights available that are ideal for residential installations. All REAL Aluminium profiles utilise innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside.

Choose from two styles available within the REAL Aluminium range: Square, the stand style window or featured, a more traditional profile replicating the ovolvo style of a traditional timber window. Both options are available internally or externally glazed.

Features and benefits of REAL Aluminium Casement windows

  • Elegant, slim sightline - up to 50% slimmer than PVCu

  • Window energy 'A' rating when used in conjunction with the correct double or triple-glazed unit

  • Espag locking

  • Option of easy clean hinges

  • Beads are retained with a special gasket and security lip that makes it virtually impossible to remove beads from outside

  • Aluminium is a rigid structure unlike PVC making it extremely difficult to remove the bead

  • Available in white, black, grey, grey exterior/white interior


THUMBNAIL - REAL BIFOLD.png

Bi-fold Doors

REAL Aluminium Bi-fold doors feature a polyamide thermal break which enhances the thermal performance of the profile and improves the overall U Value.  Profiles feature high quality EPDM gaskets and weather brushes to aid weather resistance.  Bi-fold doors offer a choice of opening configurations to suit an application. Choose to fold the sashes internally or externally, place the opening at the side so the sashes all fold one way, at one end, to create a single entrance door for easy access, or in the middle to give option of a double door.

Features and benefits of REAL Aluminium Bi-fold doors

  • Multi-point locking with shootbolt

  • Max sash weight 100kg

  • 70mm frame depth

  • 2500mm Max o/a height (per sash)

  • 1200mm Max a/o width (per sash) (provided sash does not exceed recommended weight limits)

  • Glazing available in 28mm double or triple glazed or 36mm triple glazed

  • Available in white, black, grey, grey exterior/white interior


THUMBNAIL - REAL French.png

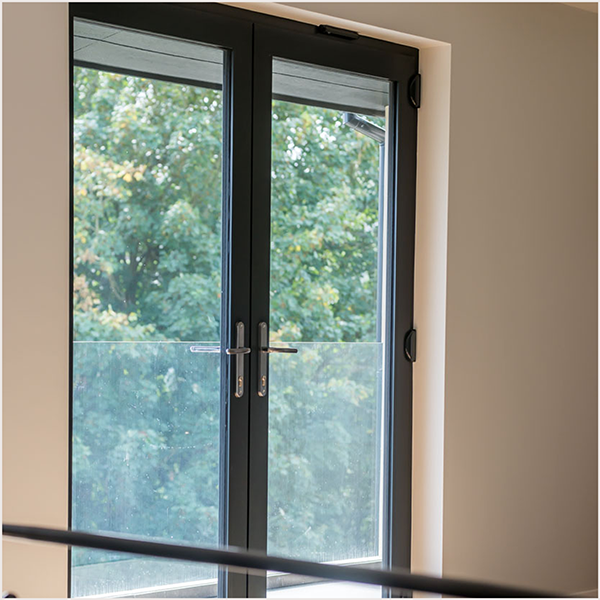

French Doors

REAL French doors is a high-performance product suitable for use in high traffic or exposed areas where a durable and reliable door is required.  Available as a single or double doors, both with internal beading.  Opening out or opening in.

Features and benefits of our REAL French doors

  • Multi-point locking

  • 2400mm maximum height

  • 900mm maximum width

  • 80kg maximum weight

  • 28mm double or triple-glazed or 36mm triple-glazed

  • 24mm double glazed units where bevelled astragal bar specified

  • Available in white, black, grey, grey exterior/white interior


THUMBNAIL - REAL PATIO.png

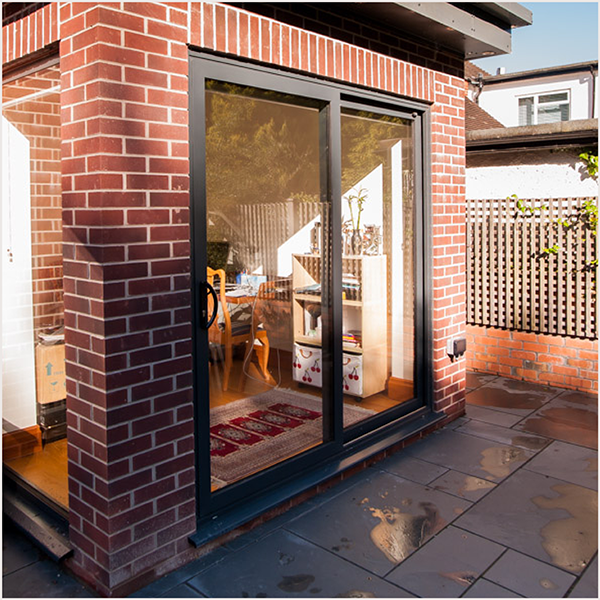

Patio Doors

REAL sliding doors are a high-performance product suitable for use in high traffic or exposed areas where a durable and reliable door is required.  Available as a single or double doors, both with internal beading.  Opening out or opening in.

Features and benefits of our REAL sliding doors

  • Multi-point locking plus a suitable triple-glazing unit

  • 200kg Maximum sash weight

  • 2500mm Maximum sash height

  • Track double or triple dependent on configuration

  • Available in white, black, grey, grey exterior/white interior
